Tapped Tips are a 2 piece design comprised of the Body and Flat Tip, both manufactured from a titanium alloy and machined to a specific shape and diameter.
The Body has a threaded end allowing the Flat Tip to be replaced. The Flat Tip or radiating face will erode with use and should be replaced when worn. Probe performance degrades in proportion to the degree of erosion which occurs at the tip surface and will reach a point where the level of energy transmitted to the sample is significantly lessoned.
Tapped Tips are NOT recommended when processing liquids containing organic solvents or low surface tension samples.
CATALOG NO. | 0-120-0010 | 0-120-0012 | 0-120-0014 | |

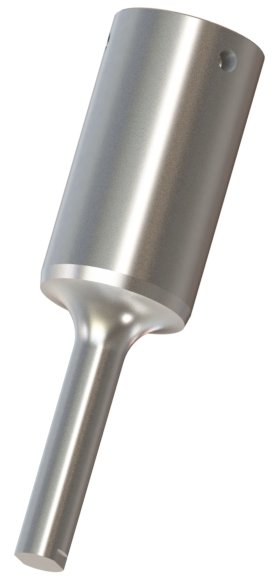

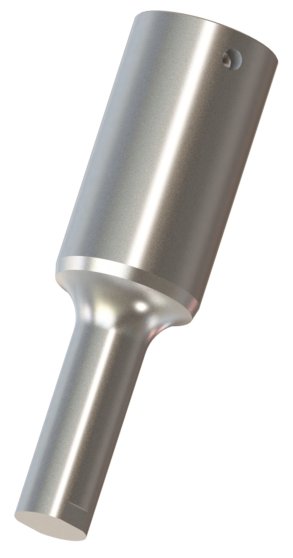

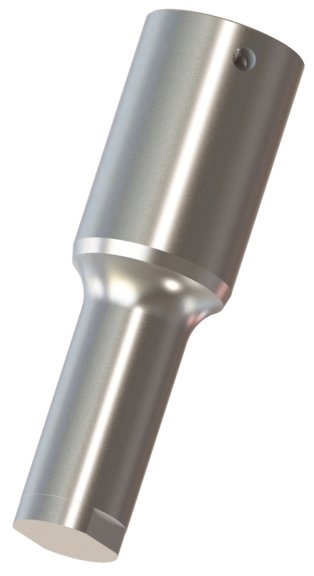

TIP DIAMETER | 13mm | 19mm | 25mm | |
PROCESSING VOLUME | 10 ml - 300 ml | 25 ml - 600 ml | 50 ml - 2000 ml | |
INTENSITY | MED-HIGH | MEDIUM | LOW | |
AMPLITUDE (MICRONS) | 140 | 70 | 40 | |
AMPLITUDE CONTROL | 100% | 100% | 100% | |

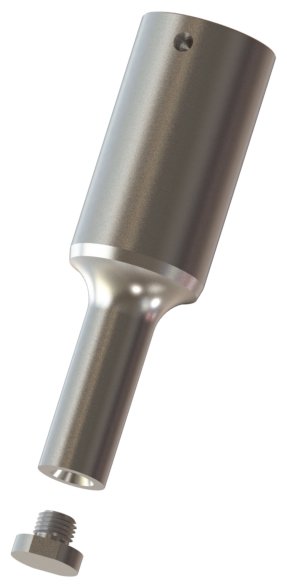

TIP LENGTH | 137mm | 130mm | 127mm | 19mm TAPPED TIP SHOWN WITH FLAT TIP DETACHED |
TYPE | TAPPED | TAPPED | TAPPED | |
INCLUDES FLAT TIP | 0-120-0016 | 0-120-0017 | 0-120-0018 |
