The Model 3000MP Ultrasonic Homogenizer delivers up to 300 watts of ultrasonic disruption with precision control from a microprocessor and a graphical user interface displayed on a large LCD display.

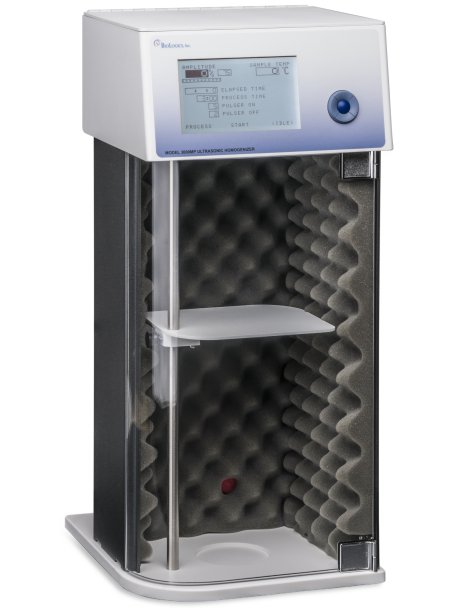

The integrated Sound Abating Chamber reduces cavitational sound emitted during sample processing. The clear door permits viewing of the sample while processing. An access port for cables and tubing is also provided for use with Cup Tips and the Continuous Flow Chamber.

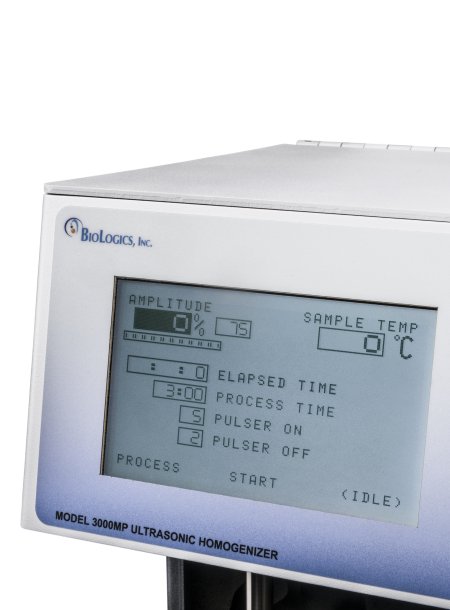

The microprocessor driven graphical user interface with large LCD display provides intuitive controls and a user friendly experience. This model utilizes an auto tuning feature with proprietary feedback circuitry insuring that the titanium tip intensity is always working at maximum efficiency regardless of the application.
The Model 3000MP offers all the advanced engineering features necessary to create a total system for ultrasonic disruption. The compact vertical footprint is ideal for processing samples with volumes less than 250 μl with the Cup Tip and volumes ranging from 250 μl to 2000 ml with a wide selection of titanium tips.
Titanium tip selection is determined by sample volume. Titanium tips have recommended sample processing volumes. Use the follwing guides for titanium tip selection:
|Model 3000MP Includes|
• Integrated Sound Chamber
The operator defines the AMPLITUDE, can enable the PULSER feature, and monitor sample temperature during processing.
The operator can define, store, and recall up to 10 programs. Within each PROGRAM, the AMPLITUDE, PULSER parameters, TEMPERATURE settings for COOL DOWN and SHUT DOWN temperatures, can be defined and stored.
The operator can define a macro of up to 5 sequences, using any of the 10 stored PROGRAMS with an optional time delay, from 1 second to 99 minutes, between each sequence.
With the optional temperature probe, the operator has the ability to monitor sample temperature during sample processing. The operator defined temperature window prevents the sample from overheating.
The upper compartment houses the Transducer when utilizing any of the Titanium Tips with the exception of the Cup Tip. The rear access port allows the Transducer cable to exit and connect to the power supply.
The clear door permits viewing of the sample, while protecting the operator from accidental slashing and reduces the sound being emitted.
All BioLogics instrument are built lead free.
|Model 3000MP, 115V/60Hz||0-128-0001|
|Model 3000MP, 230V/50Hz||0-128-0002|
|Processing Volume||Less than 250 μl with Cup Tip|
|Processing Volume||250 μl to 2000 ml with Titanium Tip|
|Maximum Tip Diameter||25.4 mm or Cup Tip|
|Power Output||0-300 Watts|
|Output Frequency||20 kHz|
|Pulser||1 to 59 seconds|
|Timer||1 second to 99 minutes|
|Temperature Controller||32 to 212 °F (0 to 100 °C)|
|Generator||10.5 in W x 12.0 in D x 23.5 in H
26.7 cm W x 30.6 cm D x 59.7 cm H
|Inside Lower Compartment||9.75 in W x 7.75 in D x 17.75 in H
24.8 cm W x 19.7 cm D x 45.1 cm H
|Transducer||2.5 in Dia. x 4.0 in L
6.4 cm Dia. x 10.2 cm L
List of all Tips and Accessories
Temperature Probe, catalog no. 2-128-0006
