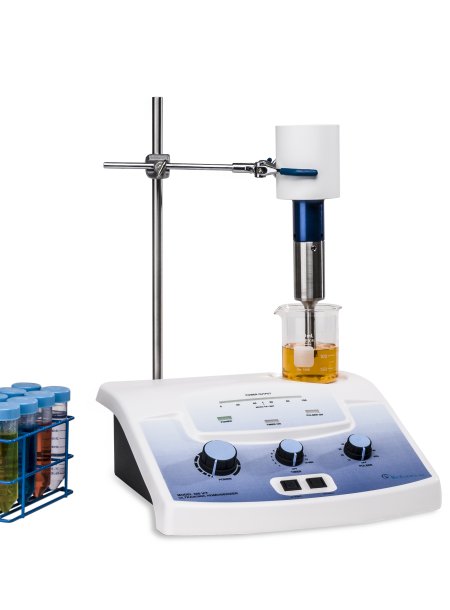

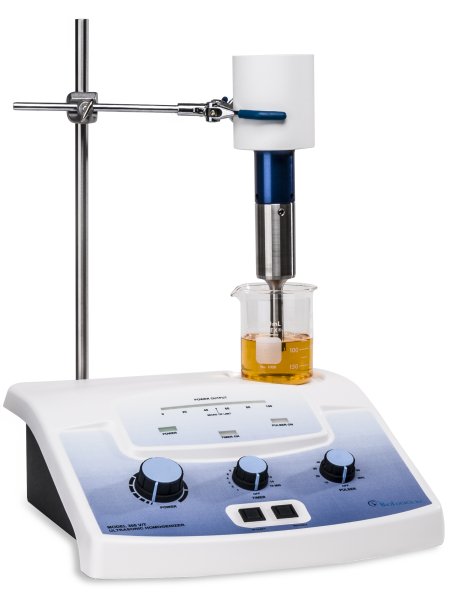

The Model 300VT Ultrasonic Homogenizer delivers up to 300 watts of ultrasonic disruption with analog controls for superior sample processing.
The Model 300VT offers all the advanced engineering features necessary to create a total system for ultrasonic disruption. The compact footprint is ideal for processing samples with volumes less than 250 μl with the Cup Tip and volumes ranging from 250 μl to 2000 ml with a wide selection of titanium tips.
Titanium tip selection is determined by sample volume. Titanium tips have recommended sample processing volumes. Use the following guides for titanium tip selection:
To help reduce the cavitational sound emitted during sample processing, use the SONABOX Sound Abating Chamber.
|Model 300VT Includes|

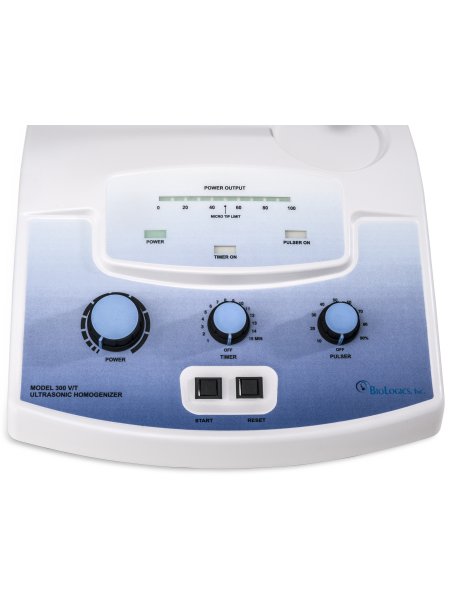

With 0-100% Amplitude (Power) control, the operator can optimize the titanium tip’s intensity to efficiently process the sample. The amplitude percentage is reflected by the output meter, enabling accurate, reproducible results.
Timer and Pulser Controls
The Timer and Pulser functions increase precision to disintegrate most cells, bacteria, spores or tissue. Prepare emulsions down to 1/100 of a micron, homogenize “immiscible” liquids, accelerate enzymatic and chemical reactions, stimulate bacterial activity, disperse solids in liquids and degas liquids.
The Auto Tuning feature employs a proprietary feedback system, insuring that the power output and titanium tip are always working at maximum efficiency regardless of the application.
All BioLogics instrument are built lead free.
|Model 300VT, 115V/60Hz||0-122-0001|
|Model 300VT, 230V/50Hz||0-122-0002|
|Processing Volume||Less than 250 μl with Cup Tip|
|Processing Volume||250 μl to 2000 ml with Titanium Tip|
|Maximum Tip Diameter||25.4mm or Cup Tip|
|Power Output||0-300 Watts|
|Output Frequency||20 kHz|
|Pulser||10 to 90% of 2 seconds|
|Timer||1 to 15 minutes or continuous|
|Sound Abating Chamber||Optional|
|Generator||12.0 in W x 10.0 in D x 4.0 in H
30.5 cm W x 25.4 cm D x 10.2 cm H
|Transducer||2.5 in Dia. x 4.0 in L
6.4 cm Dia. x 10.2 cm L
Sonifier is a registered trademark of Branson Ultrasonics Corporation
