Ultrasonic Homogenizer - Sound Abating Chamber

| Model 150VT | Model 300VT | Model 3000 | Model 3000MP |
| Tips and Accessories | Application Notes | Published Papers |

| Micro Tips | Solid Tips | Tapped Tips | Extender Tips | Replaceable Flat Tips |
| Cup Tips | Continuous Flow Chamber | Sound Abating Chamber |

The SONABOX reduces cavitational sound emitted during processing when using the Model 150VT or 300VT Ultrasonic Homogenizer.

Harmonics are produced by the vessel walls and fluid surface that can be discomforting to the operator with extended operation. The SONABOX reduces the harmonics by approximately 20-25 dB.

The clear acrylic door permits viewing of the sample while protecting the operator against accidental splashing.

The rear access port is utilized for tubing and cabling when processing samples with the Cup Tip or Continuous Flow Chamber.

The height of the sample table can be adjusted to vessel size and shape.

SONABOX Includes
• SONABOX Sound Abating Chamber
• 2 Year Warranty

Upper Compartment
The upper compartment houses the Transducer when utilizing any of the Titanium Tips with the exception of the Cup Tip. The rear access port allows the Transducer cable to exit and connect to the Ultrasonic Homogenizer.

Lower Compartment
The clear door permits viewing of the sample, while protecting the operator from accidental slashing and reduces the sound being emitted.

The adjustable sample table allows the operator to change the height of the table so that the Titanium Probe can be submerged into the sample at an optimal position.

The rear access port allows the Transducer cable to exit and connect to the Ultrasonic Homogenizer when the Cup Tip is utilized. The port can also be used with the Continuous Flow Chamber, allowing the sample and cooling tubing to connect to external circulation pumps.

RoHS compliant
All BioLogics instrument are built lead free.

Description Catalog No.
SONABOX 0-125-0001

Features
Sample Table Adjustable Height
Door Clear Acrylic
Access Port (2) Upper and Lower Compartment

Dimensions
Outside 10.5 in W x 8.5 in D x 23.5 in H
26.7 cm W x 21.6 cm D x 59.7 cm H
Inside 9.75 in W x 7.75 in D x 17.75 in H
24.8 cm W x 19.7 cm D x 45.1 cm H
SONABOX - Ultrasonic Homogenizer, Sonicator, Cell Disrupter, Sonifier

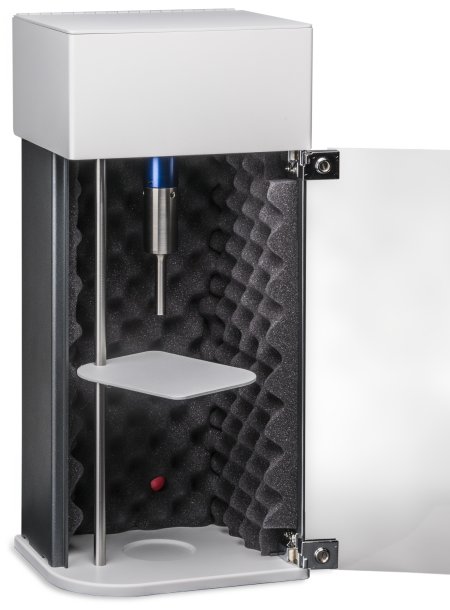

Shown with optional 12.7 mm diameter Solid Titanium Tip
  • SONBOX - Sonic Dismembrator, Probe Sonicator, Cell Disruptor, Ultrasonic Liquid Processor
  • SONABOX - Ultrasonic Homogenizer, Sonicator, Cell Disrupter, Sonifier
  • SONBOX - Sonic Dismembrator, Probe Sonicator, Cell Disruptor, Ultrasonic Liquid Processor



Ultrasonic Homogenizers
Sometimes referred to as, Sonicator, Cell Disruptor or Cell Disrupter, Probe Sonicator, Ulrasonicator, Sonifier®, Sonic Dismembrator, and Ultrasonic Liquid Processor.

Sonifier is a registered trademark of Branson Ultrasonics Corporation


Ultrasonic Homogenizers - Sonicators - Made in USA
