Solid Tip should be utilized when processing liquids containing organic solvents or low surface tension samples.

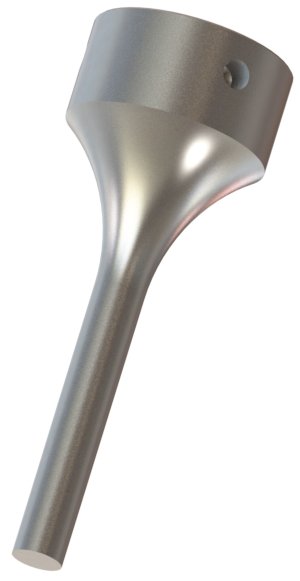

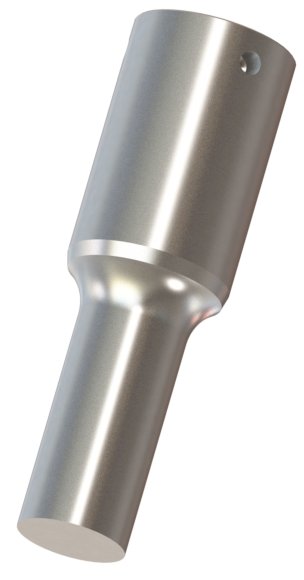

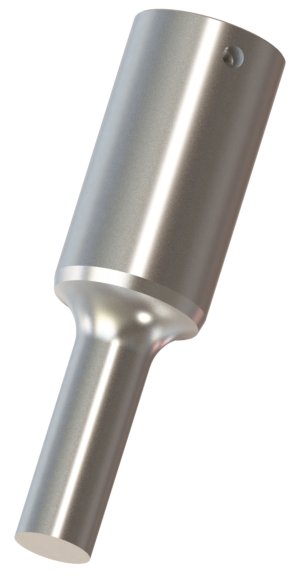

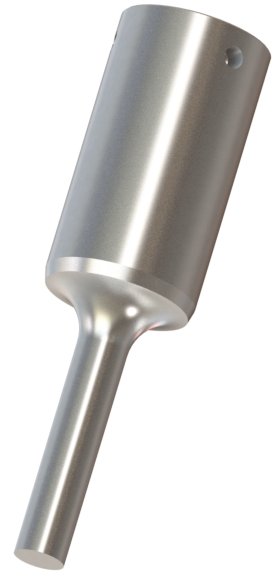

Solid Tip probes are machined from one solid titanium piece and less likely to cause sample cross contaminations.
CATALOG NO. | 0-120-0009 | 0-120-0011 | 0-120-0013 | 0-120-0015 |
TIP DIAMETER | 10mm | 13mm | 19mm | 25mm |
PROCESSING VOLUME | 5 ml - 200 ml | 10 ml - 300 ml | 25 ml - 600 ml | 50 ml - 2000 ml |
INTENSITY | HIGH | MED-HIGH | MEDIUM | LOW |
AMPLITUDE (MICRONS) |
160 | 140 | 70 | 40 |
AMPLITUDE CONTROL | 80% | 100% | 100% | 100% |
TIP LENGTH | 108mm | 137mm | 103mm | 127mm |
TYPE | SOLID | SOLID | SOLID | SOLID |
