Micro Tips are long and narrow to generate high intensity cavitation for processing small sample volumes.

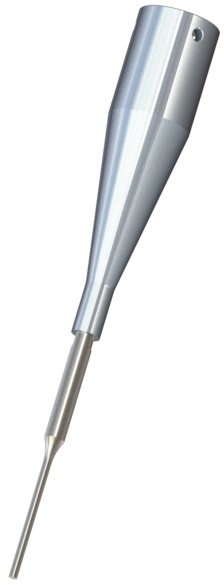

The Stepped Micro Tip is coupled directly to the Transducer.

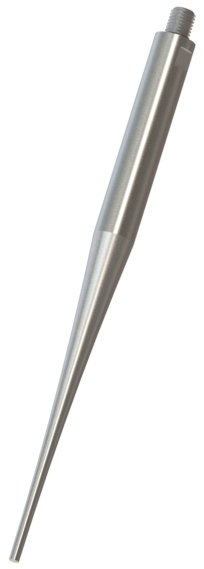

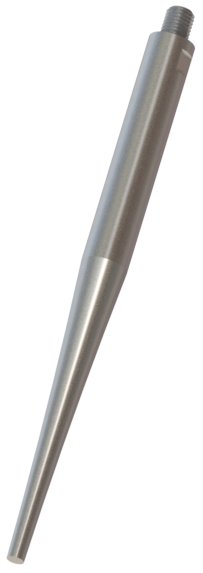

The Tapered Micro Tips are attached to the 13mm Tapped Tip (Catalog No. 0-120-0010) then coupled to the Transducer.
STEPPED MICRO TIP | TAPERED MICRO TIPS | |||
CATALOG NO. | 0-120-0005 | 0-120-0007 | 0-120-0008 | |
TIP DIAMETER | 4mm | 3mm | 5mm | |
PROCESSING VOLUME | 300 µl - 15 ml | 250 µl - 10 ml | 750 µl - 25 ml | |
INTENSITY | VERY HIGH | VERY HIGH | HIGH | |
AMPLITUDE (MICRONS) | 210 | 230 | 190 | |
AMPLITUDE CONTROL | 50% | 50% | 50% | |
TIP LENGTH | 256mm | 159mm | 104mm | |
TYPE | STEPPED | TAPERED | TAPERED | |
REQUIRES | N/A | 0-120-0010 | 0-120-0010 |

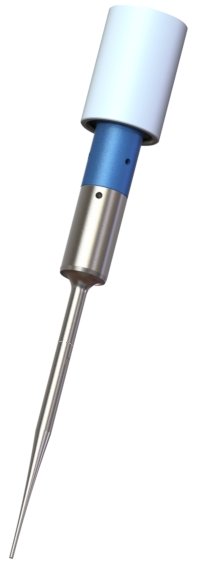

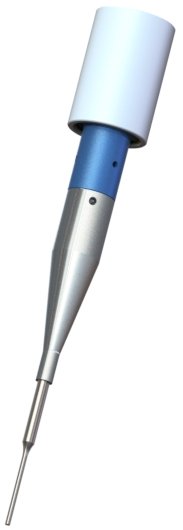

0-120-0005 SHOWN ATTACHED TO TRANSDUCER | 0-120-0007 SHOWN ATTACHED TO 13MM TAPPED TIP (0-120-0010) AND TRANSDUCER |
Buy Online | Locate a Distributor | Request Literature |
Ultrasonic Homogenizers
Sometimes referred to as,
Sonicator,
Cell Disruptor or
Cell Disrupter,
Probe Sonicator, Ulrasonicator, Sonifier®, Sonic Dismembrator, and
Ultrasonic Liquid Processor.
Sonifier is a registered trademark of Branson Ultrasonics Corporation
