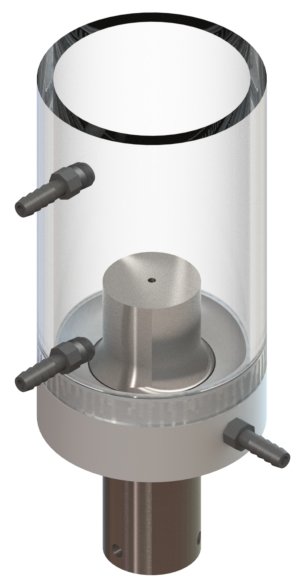

The Cup Tip offers non-contact homogenization of small volume samples in a high intensity ultrasonic bath. Samples are processed in sealed tubes or vials eliminating aerosols and cross contamination. Multiple tubes or vials of sterile or pathogenic samples can be processed simultaneously. The titanium probe is mounted within an acrylic body where the body is filled with water. Sample tubes or vials can be placed in the tray and suspended above the probe during processing. The cavitation in the water processes the tubes or vials. During sample processing, heated is generated, so inlets with barbed fittings can be connected to cold water or a Chiller to maintain temperature and water level within the acrylic body.
The Cup Tip must be used with with the Model 300VT, Model 3000, or Model 3000MP
TITANIUM CUP TIP | |||
CATALOG NO. | 0-120-0019 | ||
WATER VOLUME | 250 ml | ||
INTENSITY | HIGH | ||
TIP DIAMETER |
51 mm | ||
LENGTH | 144 MM |
||
TYPE | SOLID | ||

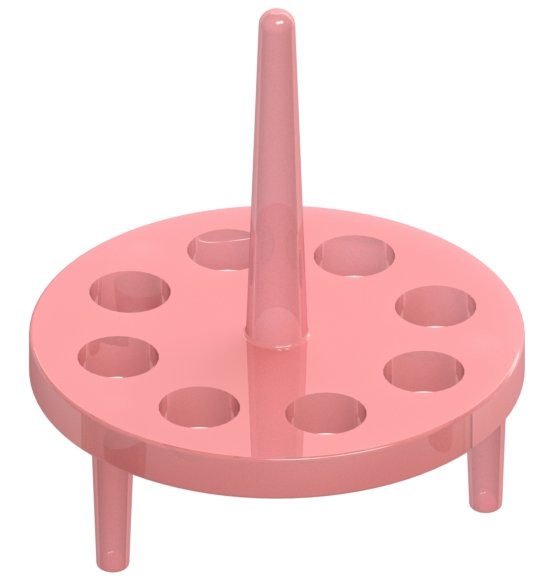

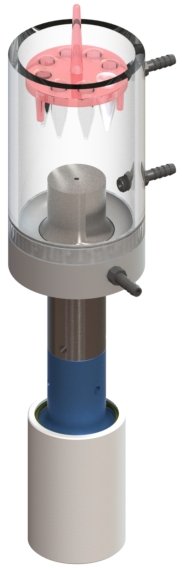

MICROTUBE TRAY - 8 POSITION | 250 ml Cup Tip attached to Transducer | ||
CATALOG NO. | 0-120-0021 | ||
Used with the 250 ml Cup Tip, it suspends 8 Microtubes within the Cup Tip for processing. |
